Products

NP50

Specification

Model

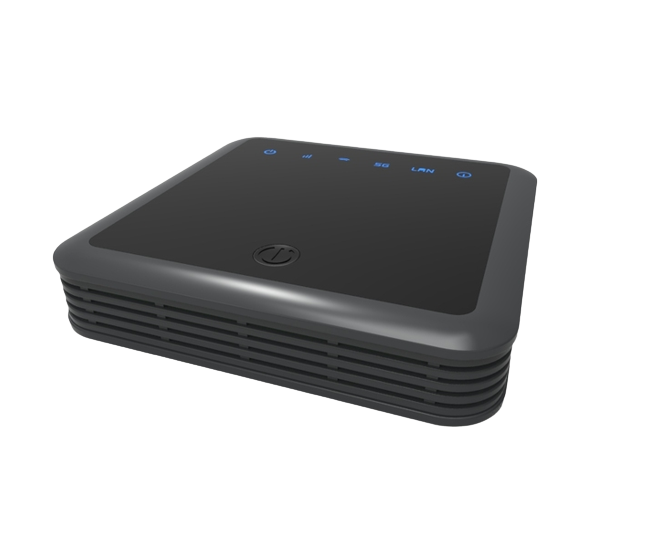

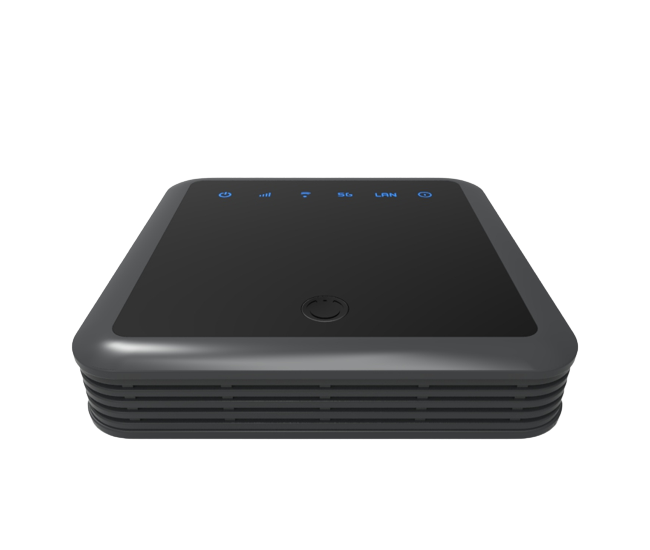

NP50 5GNR Mobile Hotspot

ITEM

SPECIFICATION

Platform

Qualcomm SDX55

Standard

3GPP Release 15 Category 20

NR5G-NSA

n78/n79

5G NR/LTE

Bands

LTE

B1/B3/B5/B7/B8

5G NR SA

DL 2.4 Gbps / UL 900 Mbps

Data Rate (Max.)

5G NR NSA

DL 3.4 Gbps / UL 550 Mbps

LTE

DL 1.6 Gbps / UL 200 Mbps

Functionality

Wi-Fi 2.4GHz / 5GHz Access Point

WLAN Specification

Wi-Fi6 (IEEE 802.11a/b/g/n/ac/ax)

Frequency Band

2.4GHz / 5GHz

Modulation Mode

DBPSK/DQPSK/CCK/BPSK/
QPSK/QAM

IEEE 802.11b : 11Mbps

Wi-Fi AP

IEEE 802.11a/g : 54Mbps

Max. Physical Data Rate

IEEE 802.11n : 600Mbps

IEEE 802.11ac : 866Mbps

IEEE 802.11ax : 1774.5Mbps

Maximum Connection Devices

Max 32 users (5GHz 16 users, 2.4GHz 16 users)

Support Security

Support WPA3 & WPA2

Charging : 5V / 3A (with USB-C type Port)

Power / Battery

Battery : 3.8V 4,000mAh

Charging Time : 2 Hours

NR5G-NSA

7 Hours

Operating Time

LTE

13 Hours

Standby

20 Hours

Interface

1x USB-C type, 1x U-SIM Slot, 5x LED

Temperature

-10℃~50℃

Operation Range

Humidity

-5~80%

Dimension

100 x 100 x 21(mm)
