LBN-100

Specification

Model

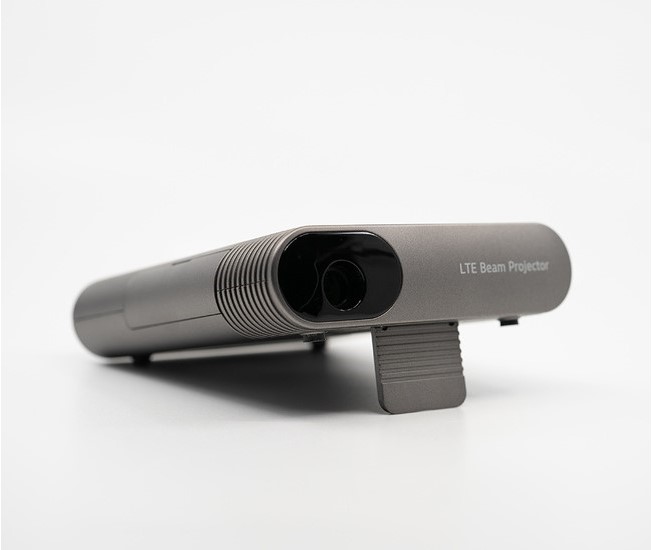

LBN-100 LTE Beam Projector

ITEM

SPECIFICATION

Standard

3GPP E-UTRA Release 9 Category 4

LTE

Bands

B3/B8

Wi-Fi STA

Frequency Band

2.4GHz/5GHz

WLAN Specification / Band

IEEE 802.11a/b/g/n 2.4GHz (20MHz / 40MHz)

Wi-Fi AP

Number of Connect

8 Users

Bluetooth

BT v4.2 (BDR, EDR, LE)

HDMI

Micro HDMI

USIM

NANO USIM

Projection Type

LCoS / Laser

Screen Resolution

WXGA (1366x768p)

ANSI Lumen

Max. 200 lm

Light Source

R.G.B Laser

Screen Ratio / Contrast Ratio

16:9 / 800 : 1

Screen Size

20" ~ 100"

Proper Projection Distance

0.6m ~ 3m

Lifespan

10,000 Hours

Projection Ratio

1.35

Focus Type

Focus Free

Power

5V / 4A, USB C-Type

Battery

Li-Polymer Type 6,000 mAh

ROM/RAM

eMMC 8GB/1GB

External Memory

Support MicroSD Card (up to 128GB), USB2.0 Port

Dimension / Weight

116x100.5x25.5(mm) / 294g
